FTG Software Updates and Manuals
This page can be reached from Help...FTG Web
Site in any FTG program
|
|
|
The What's New page contains a summary
of important updates in FilmStar and Scantraq. An exhaustive list
of improvements and bug fixes can be found in the Revision History page. |
|
|
Users should
consult our Technical Issues
pages for FAQ, information about system and installation problems,
hardware compatibility, program operation etc.
Material not included in manuals or help can be found here.
Click here for
information about reporting problems to FTG Software.
FilmStar News: 2006
2007 2008 2009
2010
2011 2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
Need on-site help? Installation? QA?
Training? Automation? Thin Film Experts is an
association of consultants in thin film technology. Experts have
wide-ranging experience with FilmStar.
|
|
|
Are there
FilmStar features and benefits you might not be aware of? Check out the
Why FilmStar page for a
series of e-mails sent to prospective users and links to flyers and videos.
Our Links Page is devoted to useful technical
information, documents and further links available on other web sites. |
| FilmStar
(Scantraq) Installers are listed below. Installation
passwords are required. These are included in e-mails sent to your
FilmStar Technical Representative. Please let us know if there are any
other addresses to be added as cc.
Once you've
installed FilmStar, the main installer Setup32.exe
provides a convenient option for updating programs. You will not need
to re-enter passwords until they are changed.
The version of
any FTG program is obtained by clicking Help.. About. Version
information is also found by right-clicking the file name
in Explorer and viewing Properties.
|
|
FilmStar BASIC programs
are included in the
complete installation and in basic32.zip. The ZIP file lets you restore BASIC programs which were altered
and no longer work. Shoji.zip
includes two BASIC programs kindly
contributed by Mr. H. Shoji
of Tokai Optical. One program estimates coating time; the other
opens Hitachi *.uds spectrophotometer files.
|
 |
Don't miss Excel
extends optical coating software capabilities in
Laser Focus World, April 2014. You have Excel and your customers have
Excel, so do more with
it, like upgrading
QA capabilities.
Click here to read the article;
click here to
download
Excel workbook examples (Reference 1 in the article). Be sure to
contact us if you have any questions or need help. |
|
Not
receiving FilmStar News e-mails? Probably your system
treats them as spam/junk. Please contact IT and ask them to
add ftgsoftware.com to your e-mail Friends List/Whitelist. |
Only
current versions are available for download.
Please save installers and corresponding passwords.
Close all FTG Software programs before re-installing.
Scroll down for
Updaters which quickly replace EXE and help files.
Need to verify that
downloaded files are genuine?
Click here. |
Under rare
circumstances some FilmStar dialogs may fail to open,
thereby locking the program. The is usually caused by invalid window
coordinates and is easily fixed. Please
click here for
instructions. |
Please check the date
of downloaded installers. If setup32.exe is
already on your computer, it will be renamed setup32 (1).exe, etc. |
| Installers |
File Link |
|
DESIGN 2.61.4772
INDEX 2.51.0802
MONITOR 2.54.0018
CRYSTAL 2.30.0068
MEASURE/Scantraq 2.51.2103/2122
|
|
NEW
INSTALLATION? BE AWARE OF
A RARE BUT POSSIBLE ISSUE.
The Destination Folder must include the
drive, normally c:\. If only Winfilm is displayed click <Browse> to
add c:\. |
 |
|
Updaters
The
DESIGN Updater (3.4 MB) quickly
updates DESIGN and INDEX.
Close any running FilmStar programs before updating or installing!
If your current version is too out-of-date, utilize the full installer.
MONITOR Updater (1.0
MB)
MEASURE/Scantraq Updaters (1.2 to 1.7 MB):
Mcary5
Mcary5U
(UMA)
Mpe983
Mpe950 (1050 2D)
Mhp8453
Mpe1050 (1050 3D)
Mpe1050g
(1050 3D, InGaAs Sphere)
PE Lambda 1050 2D/3D Details
.png)
NEW: Mpe950.exe supports 1050 with 2D Detector
UV Winlab 6 required. UV Winlab 7 is incompatible.
It should be possible to control the Lambda 1050 (2D)
with Mpe983.exe
in %T/OD modes (not URA). In that case UV Winlab is not required.
Select Device = PE 900/950 and please report outcome to FTG
Software.
.png)

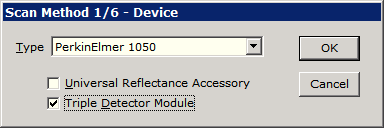

Mpe1050.exe supports 1050 with 3D Detector
UV Winlab 6 required. UV Winlab 7 is incompatible.
Updaters automatically back up previous versions. |
| Getting
started with... |
FilmStar
FilmStar
MEASURE
Scantraq |
Additional Installation Issues
PE Spectrum FTIR: click here.
Cary UMA:
Mcary5U.exe (WinUV 6 compatible) Driver Registration:
Name: FTG Software (Development)
Key:
106D00
Recommended when debugging FilmStar BASIC/Excel VBA solutions:
End stuck FilmStar/Scantraq processes: EndFTGprocs.exe
End other stuck processes:
Excel
Word
Chrome
Turn MEASURE/Scantraq Test Mode OFF in
File..Configuration..Preferences |
FileMaker Database
Support
Requires FileMaker Pro 12-19 and
DESIGN>=2.61.4580 or MEASURE>=2.51.2030.
Accessing
the FilmStar Database |
FM12Setup.exe
(2.5M, 22 Aug 21)
FileMaker Pro Free Trial |
Sopra n,k Files
Install FilmStar DESIGN first |
Soprank.exe
(537K) |
| Lambda
1050 integrating sphere version |
1050gupdate.exe
(659K) |
| BASIC
Macro Collection |
basic32.zip |
Printed manuals are the same as <F1> program help, but updated less
frequently. Please consider environmental impact and print
only required portions of manuals such as BASIC commands.
|
Please do not supply passwords
to users outside
your facility.
We rely on your cooperation. Thank you!
|
support@ftgsoftware.com
Spam filters are
not 100% accurate.
If we do not reply to your e-mail in a timely manner (2-3 days) please
inform us by telephone.
Telephone
+1 609 924 6222
|
|
